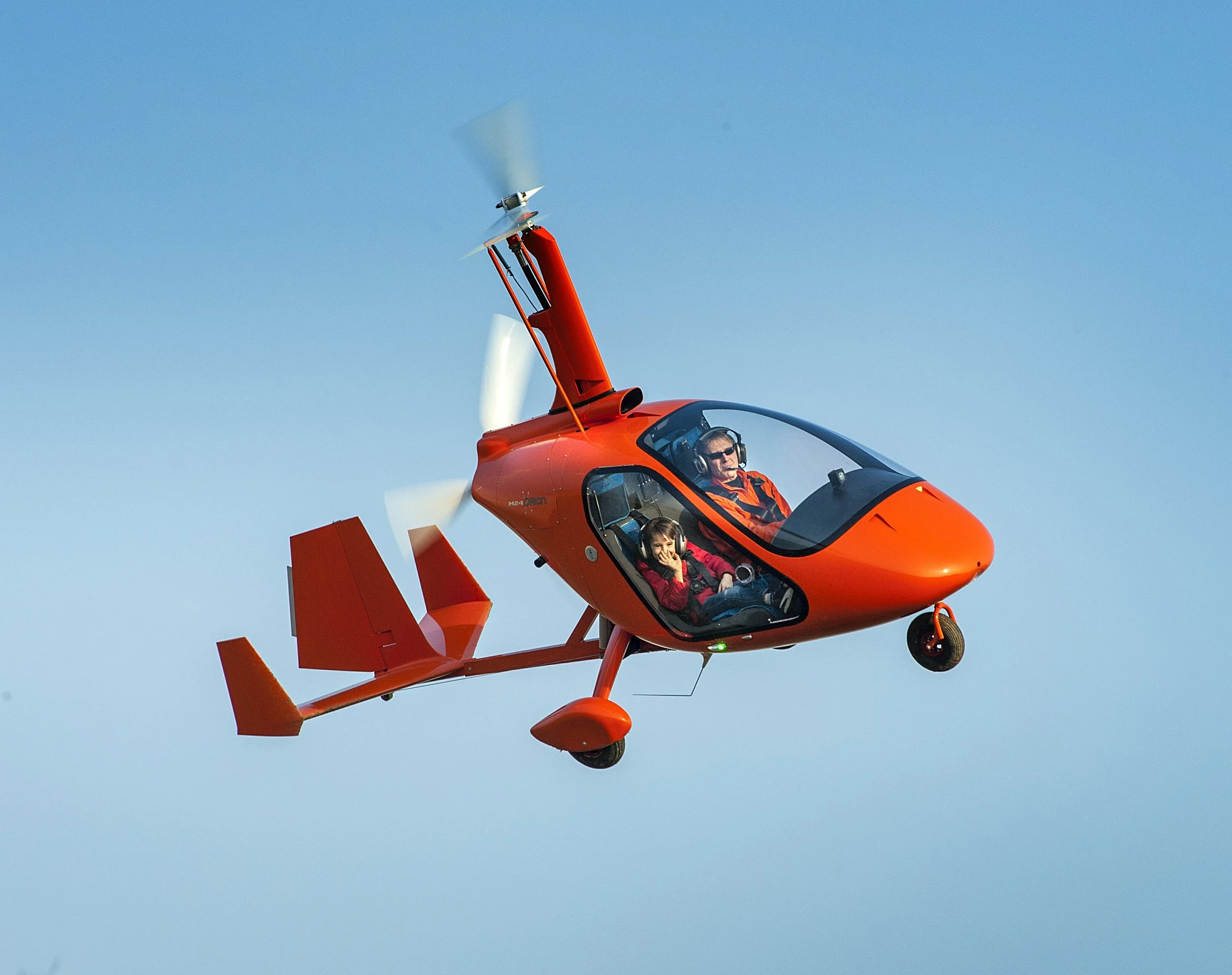

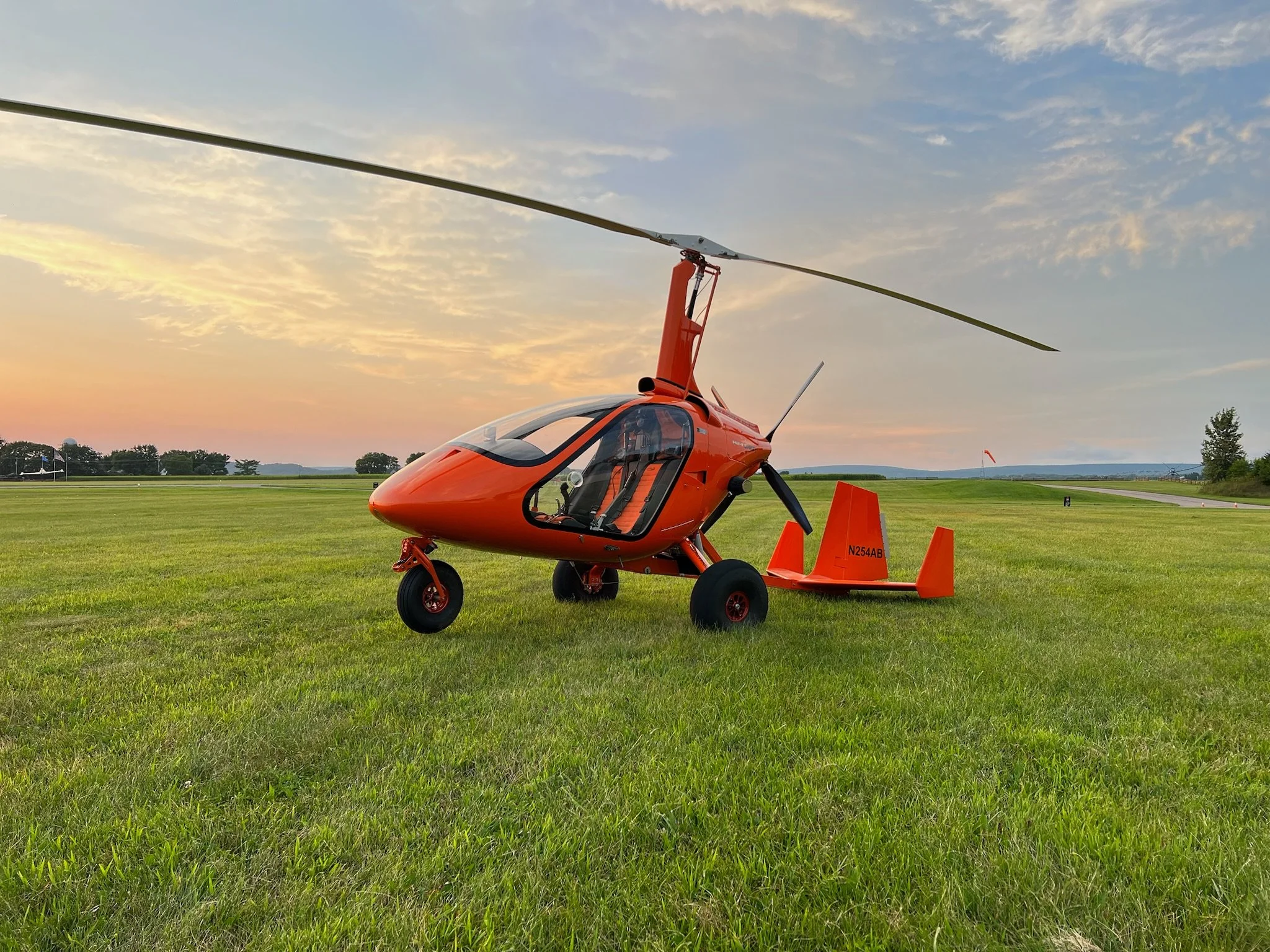

M24 Orion
The Magni M24 Orion blends Italian design with smooth performance and exceptional stability. Its enclosed side by side cabin, panoramic visibility, and refined controls create a comfortable and enjoyable flight experience.
MOSAIC Ready
-
Max Speed: 115 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Service Ceiling: 12000 ft
Takeoff Roll: 125 - 400ft
Landing Roll: 0 - 100 ft
Max Crosswind: 25 knots
Fuel Burn: 4.5 - 6.5 gph
Endurance: 3 - 4 hours
Range: 325 miles
Fuel Capacity: 21 gallons
-
Configuration: Side by Side
Rotor Diameter: 28 ft
Height: 9 ft 1 in
Length: 14 ft 6 in
Width: 5 ft 10 in
Empty Weight: 695 - 725 lbs
Gross Weight: 1320 lbs
Useful Load: 595 - 625 lbs
Baggage: 50 - 100 lbs
Engine: Rotax 915iS/916iS
Fuselage: Carbon Fiber
Frame: 4130 Steel
Rotor: Composite
Propeller: DUC 4 Blade
Controls: Full Dual
Wheels: Beringer

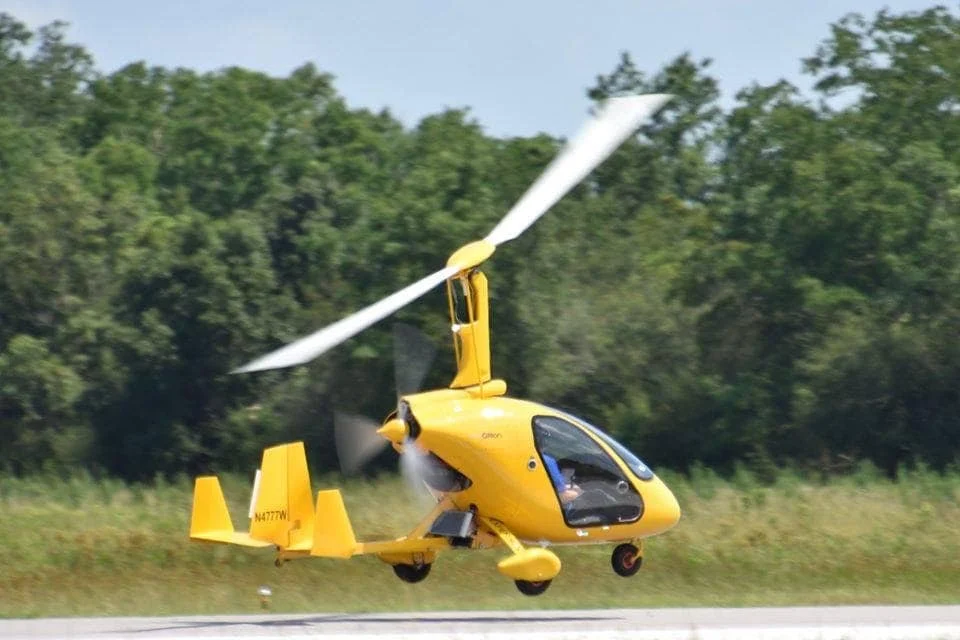

Xtreme M24
The M24 Xtreme is built for pilots who want off airport capability without giving up the side by side experience. Upgraded suspension and tundra tires deliver smoother handling on rough terrain, with only a slight reduction in cruise speed.
-
Max Speed: 115 mph
Cruise: 65 - 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 125 - 300 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.5 - 7.0 gph
Range: 325 miles
-
Configuration: Side by Side
Doors: Removable
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 14 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS or 916iS
Empty Weight: 725 lbs
Gross Weight: 1320 lbs
Useful Load: 595 lbs
Fuel Capacity: 21 gallons
Baggage: 50 - 100 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 or 5 Blade; Constant Speed Options
Controls: Dual
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
