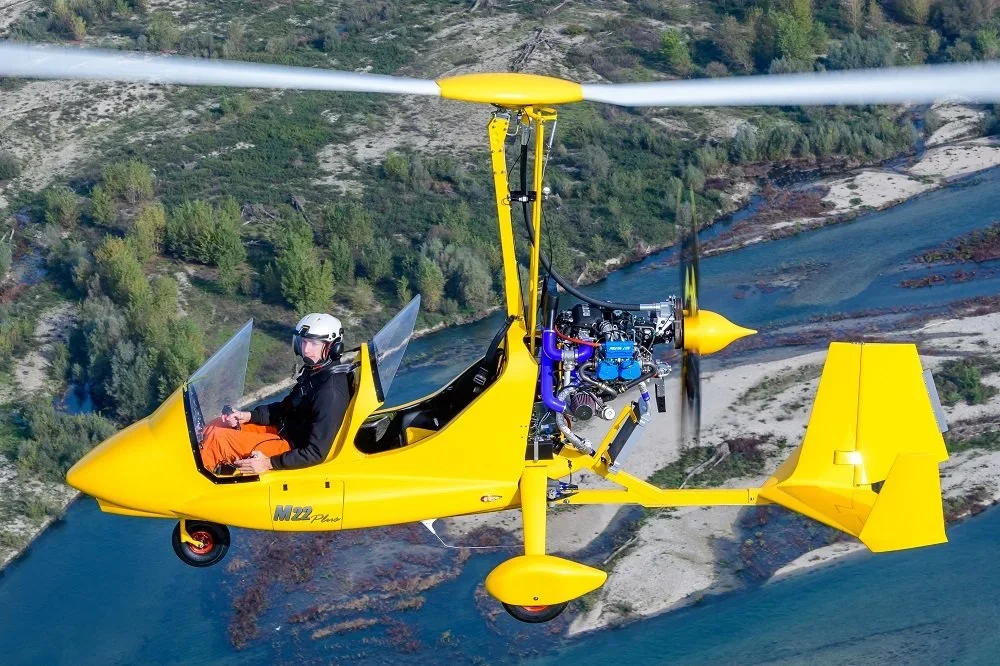

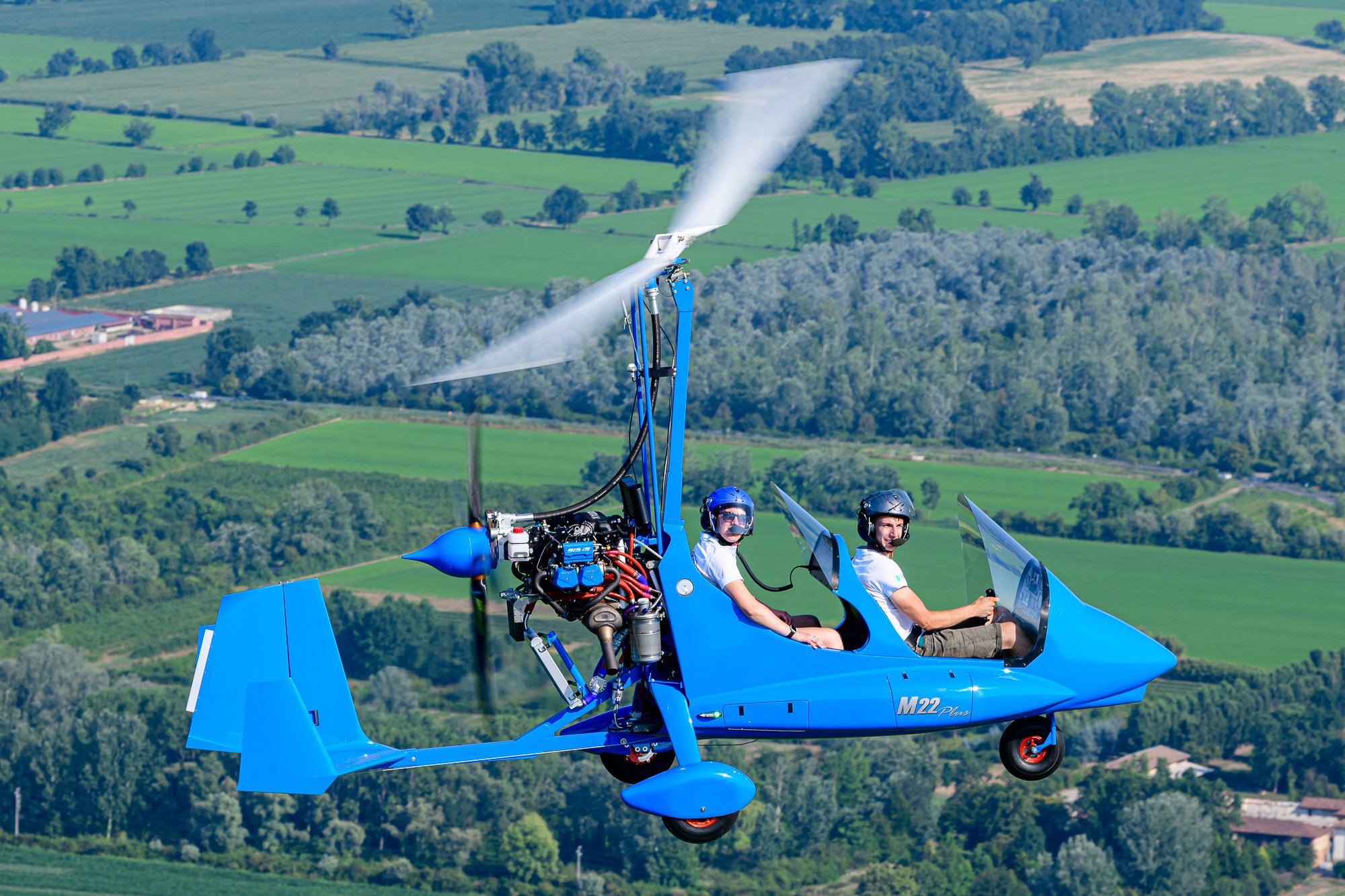

M22 Voyager
The Magni M22 Voyager is built for touring and personal flying, offering stable performance, reliability, and smooth cross country capability. Its open cockpit design delivers a strong sense of connection to flight, with no rear controls to get in the way of your passenger.
MOSAIC Ready
-
Max Speed: 120 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Service Ceiling: 12000 ft
Takeoff Roll: 50 - 300 ft
Landing Roll: 0 - 100 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.0 gph
Endurance: 3 - 4 hours
Range: 350 miles
Fuel Capacity: 21 gallons
-
Configuration: Tandem
Rotor Diameter: 28 ft
Height: 9 ft 1 in
Length: 15 ft
Width: 5 ft 10 in
Empty Weight: 650 - 680 lbs
Gross Weight: 1320 lbs
Useful Load: 640 - 670 lbs
Baggage: 40 - 60 lbs
Engine: Rotax 914, 915iS
Fuselage: Carbon Fiber
Frame: 4130 Steel
Rotor: Composite
Propeller: DUC 4 Blade
Controls: Front Only
Wheels: Beringer

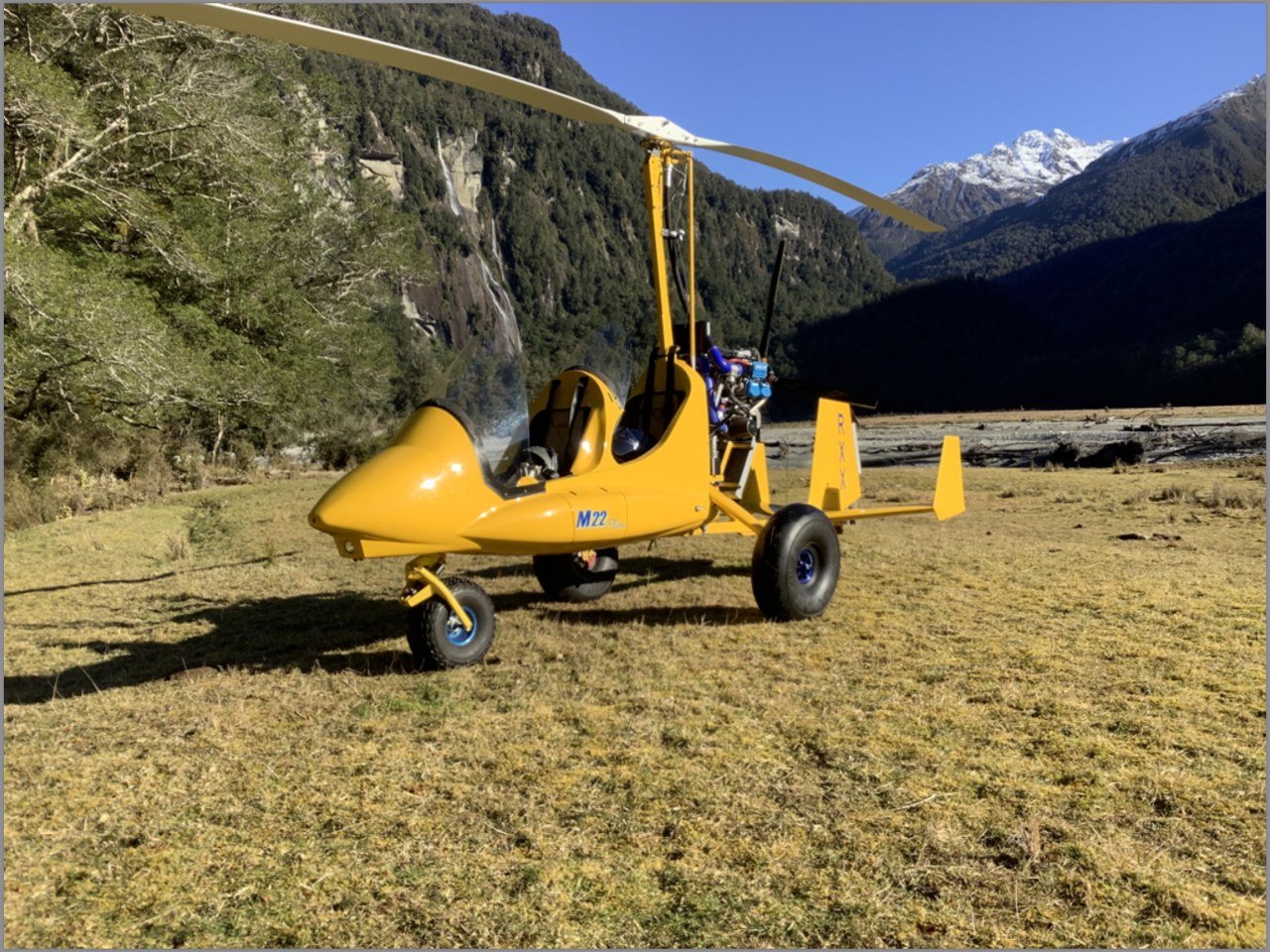

Xtreme M22
The M22 is built for pilots who prefer solo flying with extra baggage space and easier passenger access. It’s ideal for adventure flying and remote destinations, from river canyons to sandbars. With upgraded suspension and 21 inch tundra tires, it’s capable of handling a wide range of terrain.
-
Max Speed: 115 mph
Cruise: 65 - 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 50 - 225 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.5 gph
Range: 350 miles
-
Configuration: Tandem
Doors: Overkill…
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 15 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS
Empty Weight: 680 lbs
Gross Weight: 1320 lbs
Useful Load: 640 lbs
Fuel Capacity: 21 gallons
Baggage: 40 - 60 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Front Only
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
