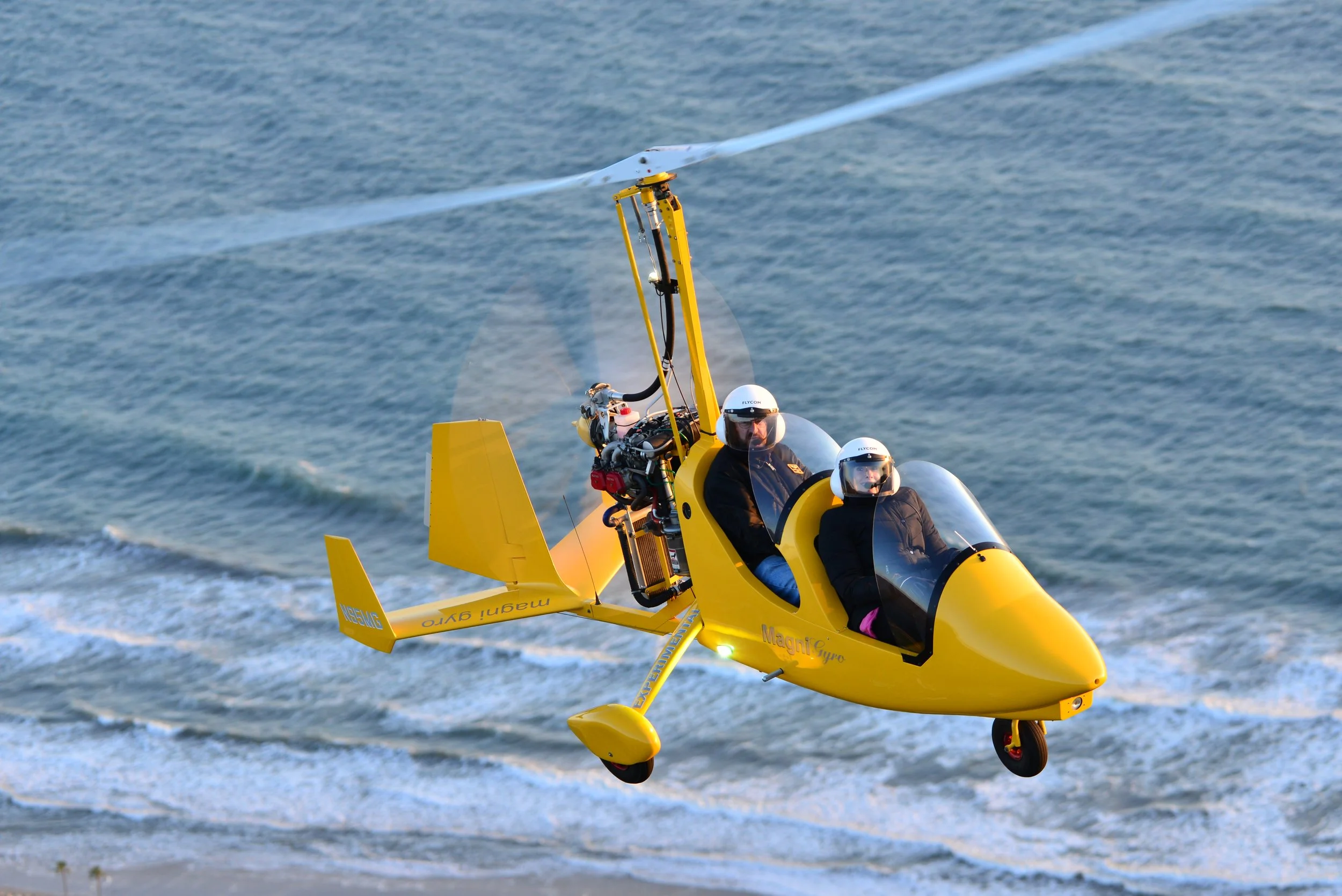

M16 Tandem
The Magni M16 is a trusted open cockpit gyroplane known for its simplicity, reliability, and agile handling. Its tandem seating and dual controls make it ideal for both training and adventure flying, keeping you fully connected to the sky.
MOSAIC Ready
-
Max Speed: 120 mph
Cruise: 95 mph
Rate of Climb: 1500 ft/min
Service Ceiling: 12000 ft
Takeoff Roll: 50 - 300 ft
Landing Roll: 0 - 100 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.0 gph
Endurance: 3 - 4 hours
Range: 325 miles
Fuel Capacity: 19 gallons
-
Configuration: Tandem
Rotor Diameter: 28 ft
Height: 9 ft 1 in
Length: 15 ft
Width: 5 ft 10 in
Empty Weight: 645 - 675 lbs
Gross Weight: 1320 lbs
Useful Load: 645 - 675 lbs
Baggage: 20 - 40 lbs
Engine: Rotax 912, 914 or 915iS
Fuselage: Carbon Fiber
Frame: 4130 Steel
Rotor: Composite
Propeller: DUC 4 Blade
Controls: Full Dual
Wheels: Beringer

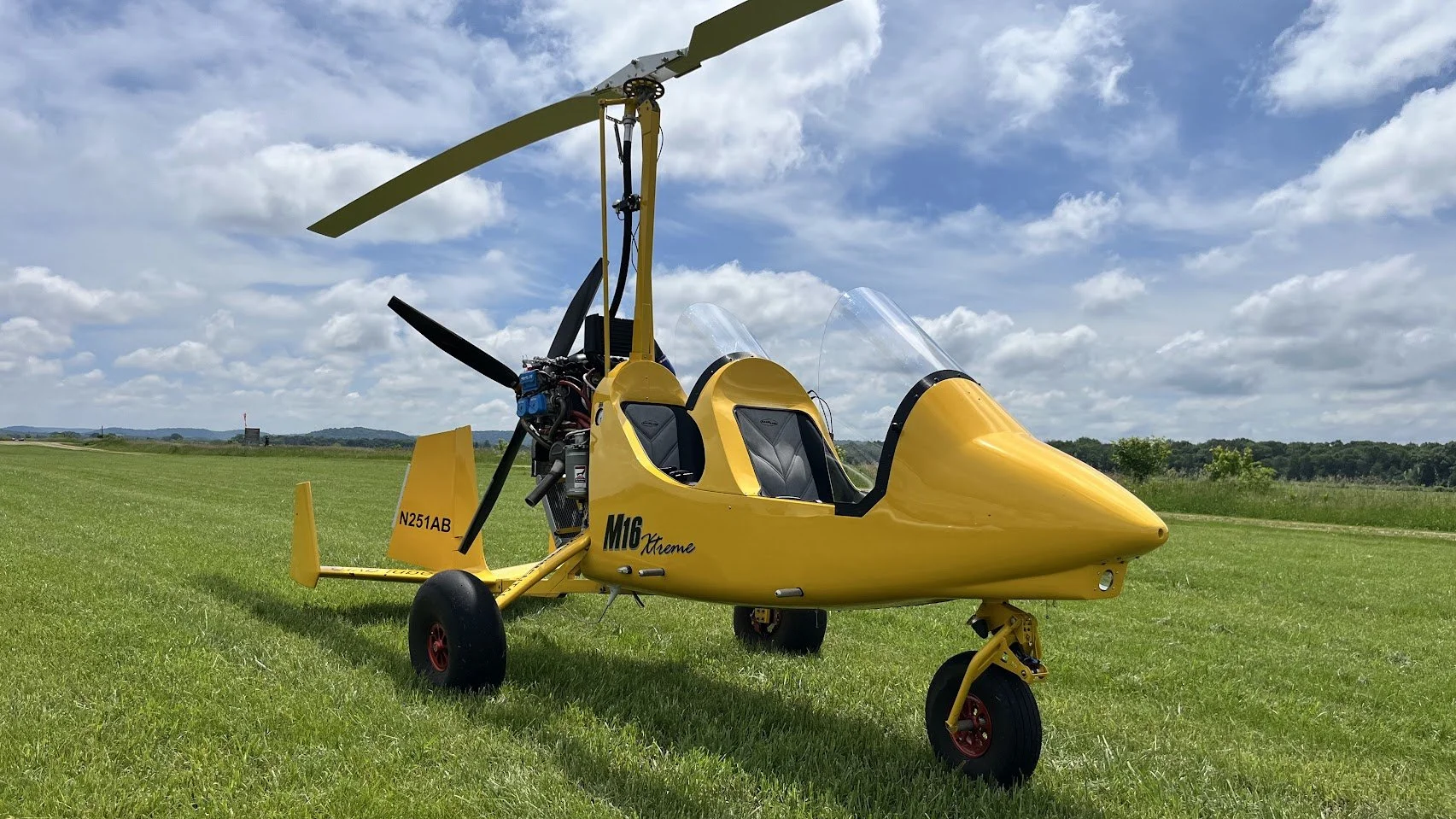

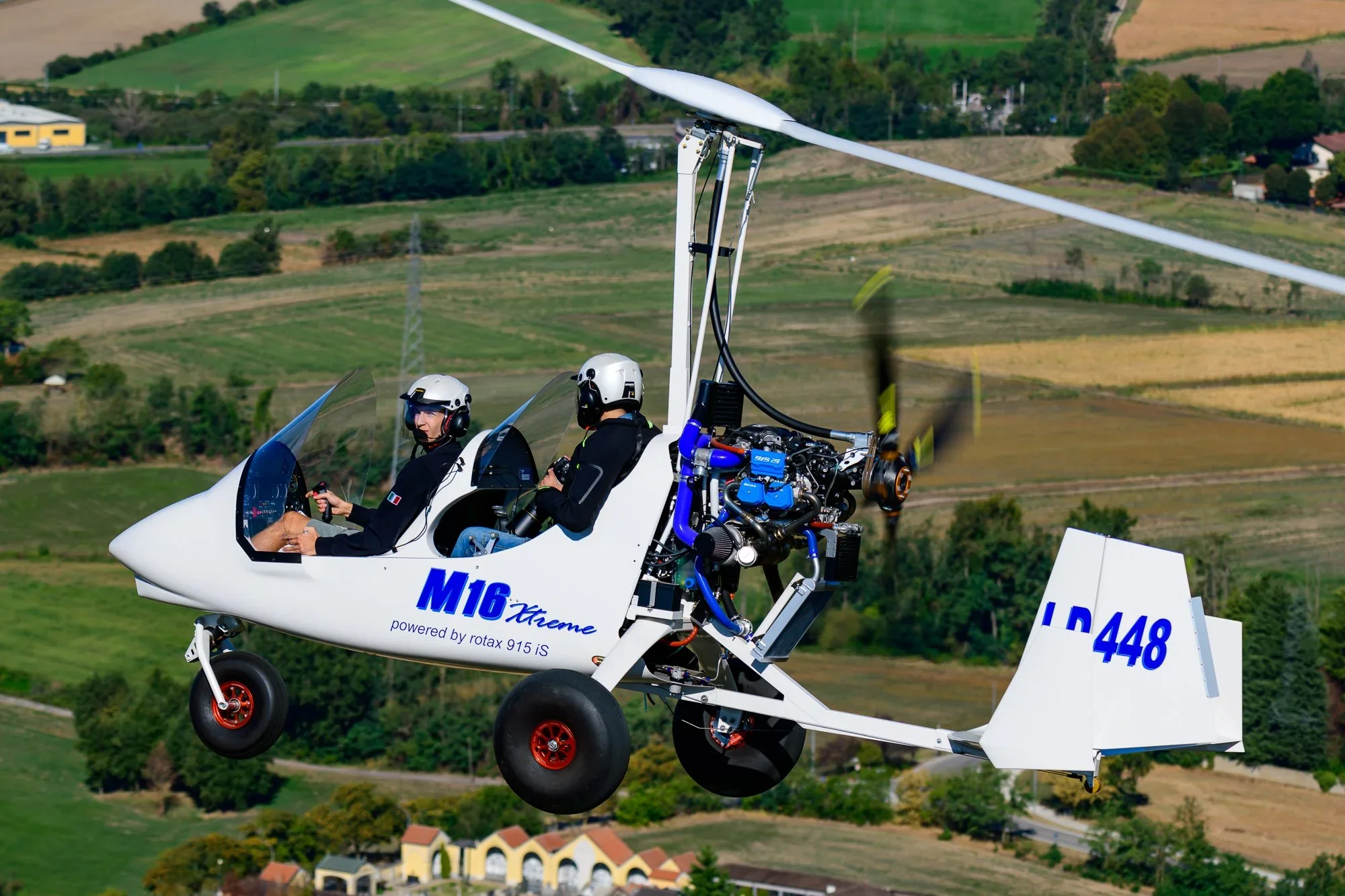

Xtreme M16
The M16 Xtreme takes the original agility of the M16 and adds true backcountry capability. With upgraded suspension and large tundra tires on a 4130 chromoly steel frame, it handles rough terrain with ease while maintaining strong cruise performance. It has become the most popular M16 variant for its versatility and capability.
-
Max Speed: 115 mph
Cruise: 65 - 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 50 - 225 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.5 gph
Range: 325 miles
-
Configuration: Tandem
Doors: What doors?
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 15 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS
Empty Weight: 675 lbs
Gross Weight: 1320 lbs
Useful Load: 645 lbs
Fuel Capacity: 19 gallons
Baggage: 20 - 40 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Dual
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
